STORE PICKUP OR LOCAL DELIVERY ONLY

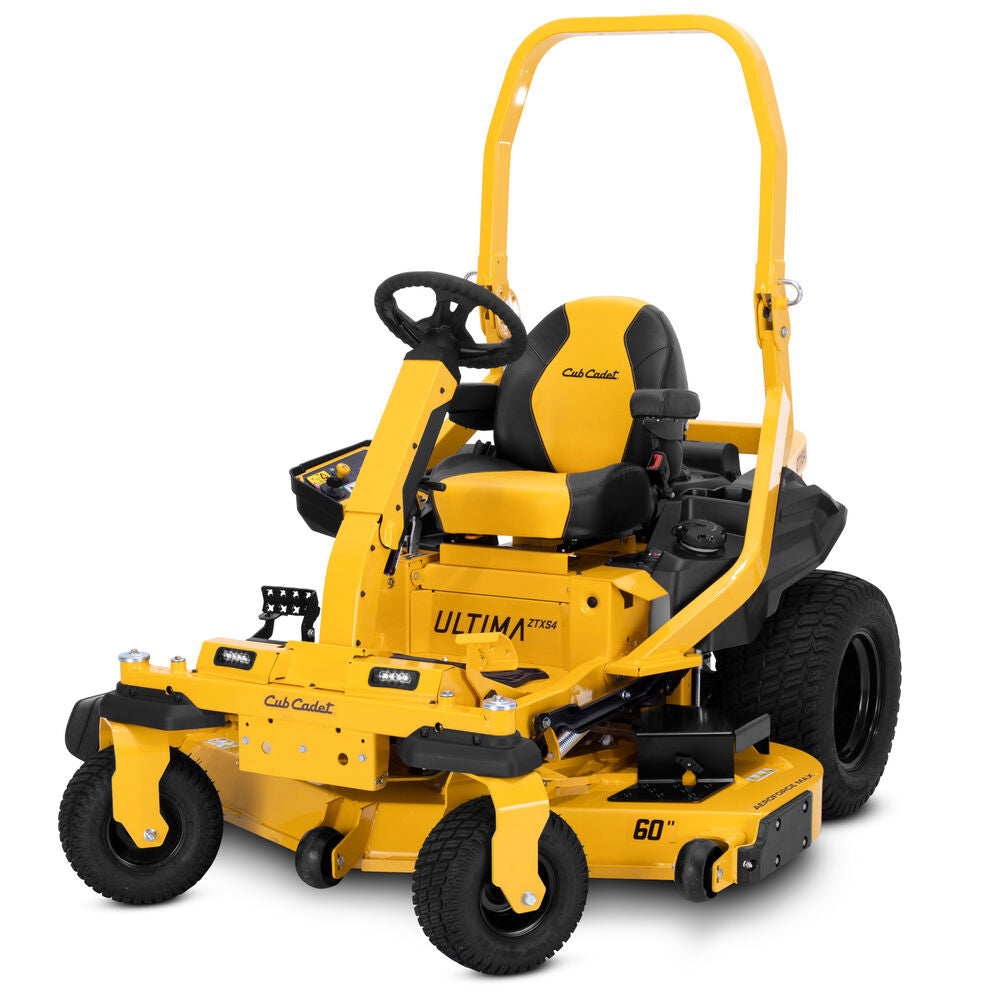

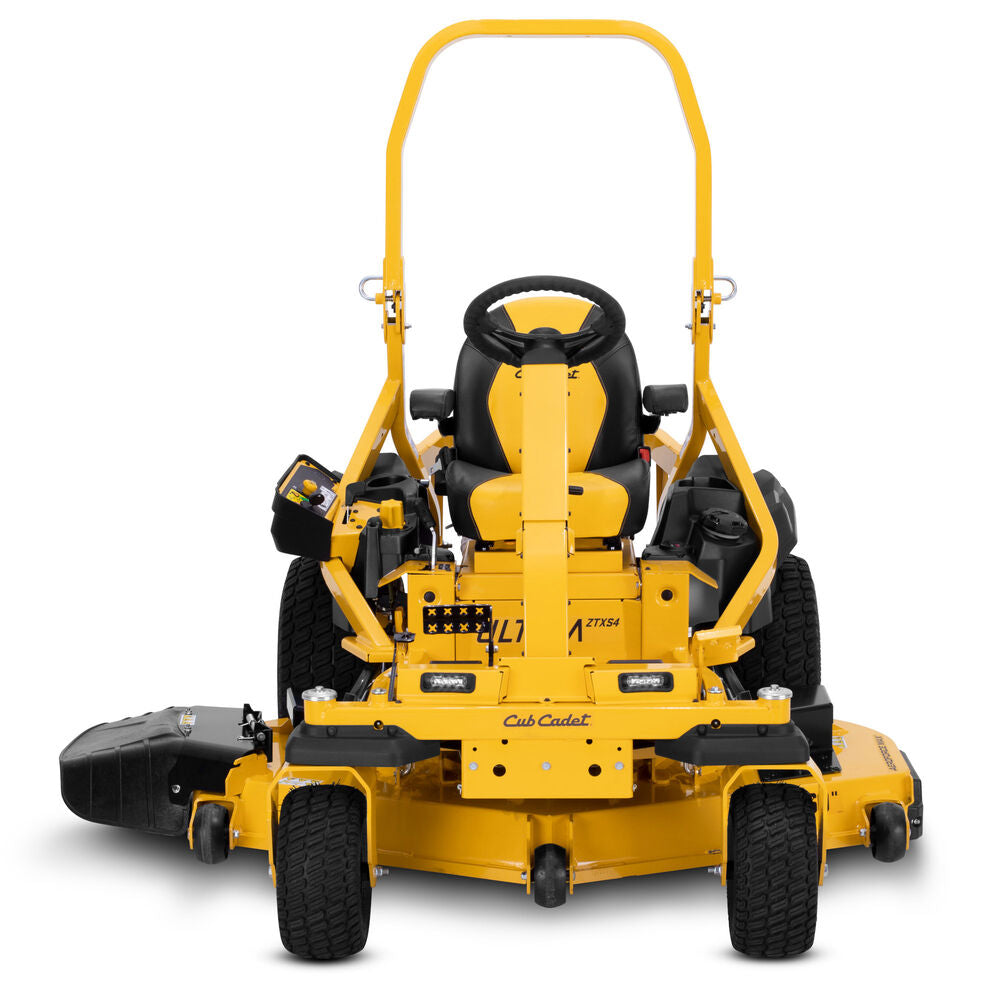

ZTXS4 60

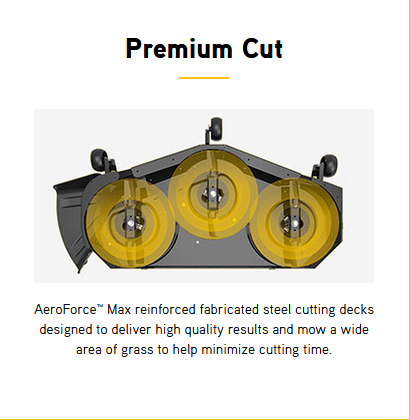

The Cub CadetĀ® Ultima Series ZTXS4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForceā¢ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. The Synchro-Steerā¢ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees.
- Synchro-Steerā¢ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20Ā°
- A 24 HP* Kohler Pro 7000 Series KT735 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
- A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
Ā
Ā
Engine
- Engine Brand: KohlerĀ®
- Engine Model: Pro 7000 series
- Engine Model Number: ZT745
- Engine Displacement: 747cc
- Engine Output: 26HP
- Starter Type: Electric
- Fuel Tank Capacity: 5.5 gal. US
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 2 qt USĀ
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: Yes
- Governor: Mechanical
- Choke: Choke-a-matic
- Air Filter: Dual element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Ā
Battery
- Battery: 210 CCA
- Battery Type: AGM (Absorbent Glass Mat)
- Battery Voltage: 12V
Ā
Drive System
- Transmission: Hydro-Gear ZT 3100
- Forward Speed: 8.5 MPHĀ
- Reverse Speed: 3.5 MPHĀ
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting Width: 60Ā in
- Deck Wash: No
- Deck Material: 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO): Electric
- Deck Construction: Fabricated
- Blade(s): Three
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1″ – 4.75″
- Anti-Scalping: Three gauge wheels
- Deck Positions: 17
Ā
Warranty
- Warranty: 4-year 800 hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime limited
- Commercial Warranty: 4-year 800 hours
Ā
Chassis
- Frame: 1.5″ x 3″ tubular steel
- Turning Radius: 0Ā°
- ROPS: Yes
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Ā
Controls
- Cruise Control: No
- Brakes: Disc
- Steering Control: Steering Wheel
Ā
Comfort
- Seat Type: 20″ high back
- Armrests: Yes
- Seat Adjustment: Lever
Ā
Wheels
- Rear Tires: 22″x 12″-12″
- Front Tires: 13″x 6.5″-6″
- Tire Tread: Turf Master / Multi Trac
Ā
Additional Specifications
- Hour Meter: Yes
- Mulch Kit: Available separately
- Headlight(s): Dual-LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Foot Controlled
- Model Number: 47RSCAB8A10
Ā
Ā
Specifications
- Series Ultima Seriesā¢ ZTXS
|
|
Ā
AIR FILTER: 32 883 13-S1 OR 490-200-K064
OIL FILTER: 52 050 02-S
FUEL FILTER: 24 050 13-S1
SPARK PLUG: 25 132 14-S
PTO BELT: 754P06094
DECK BELT:Ā
DRIVE BELT: 954-04317A
TRANS FILTER: HG-52114P
BLADES: 742P05516
XTREME BLADES:Ā
IGNITION KEY: 925-1745A
ENGINE OIL: 25 367 65-S
|
