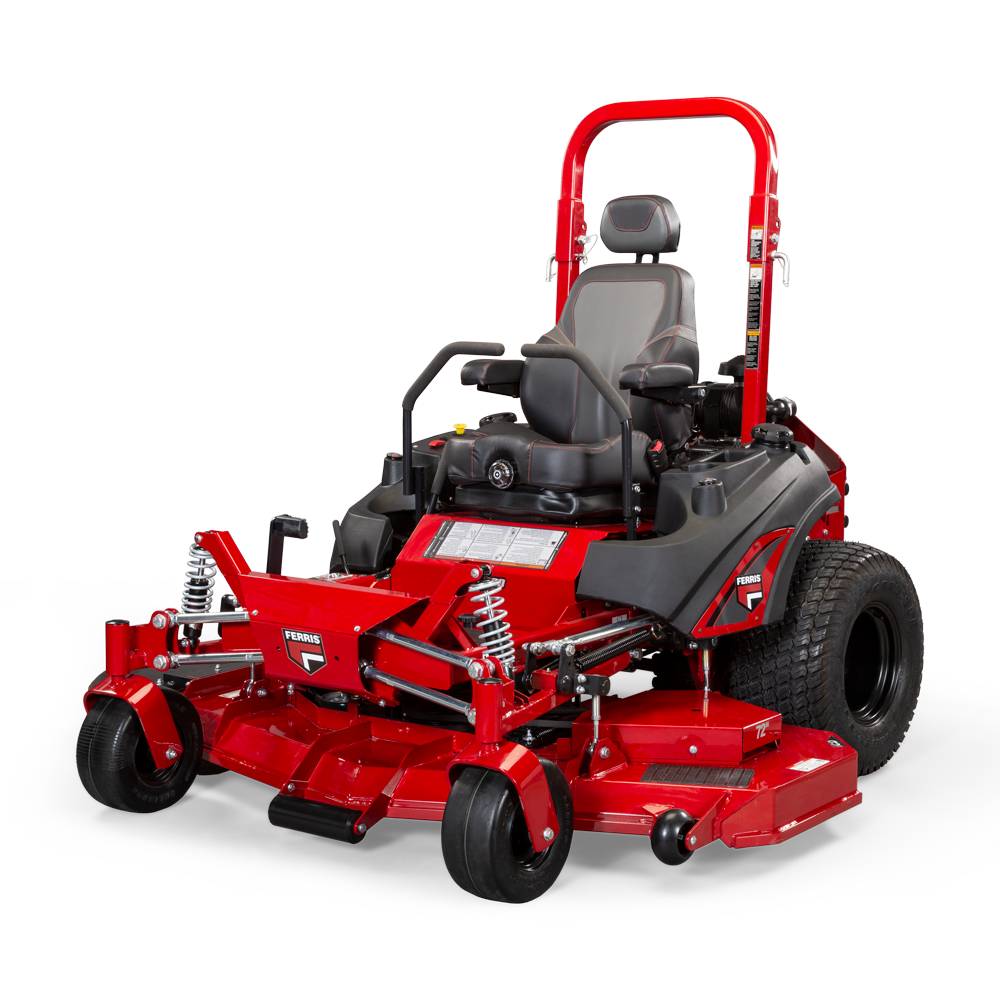

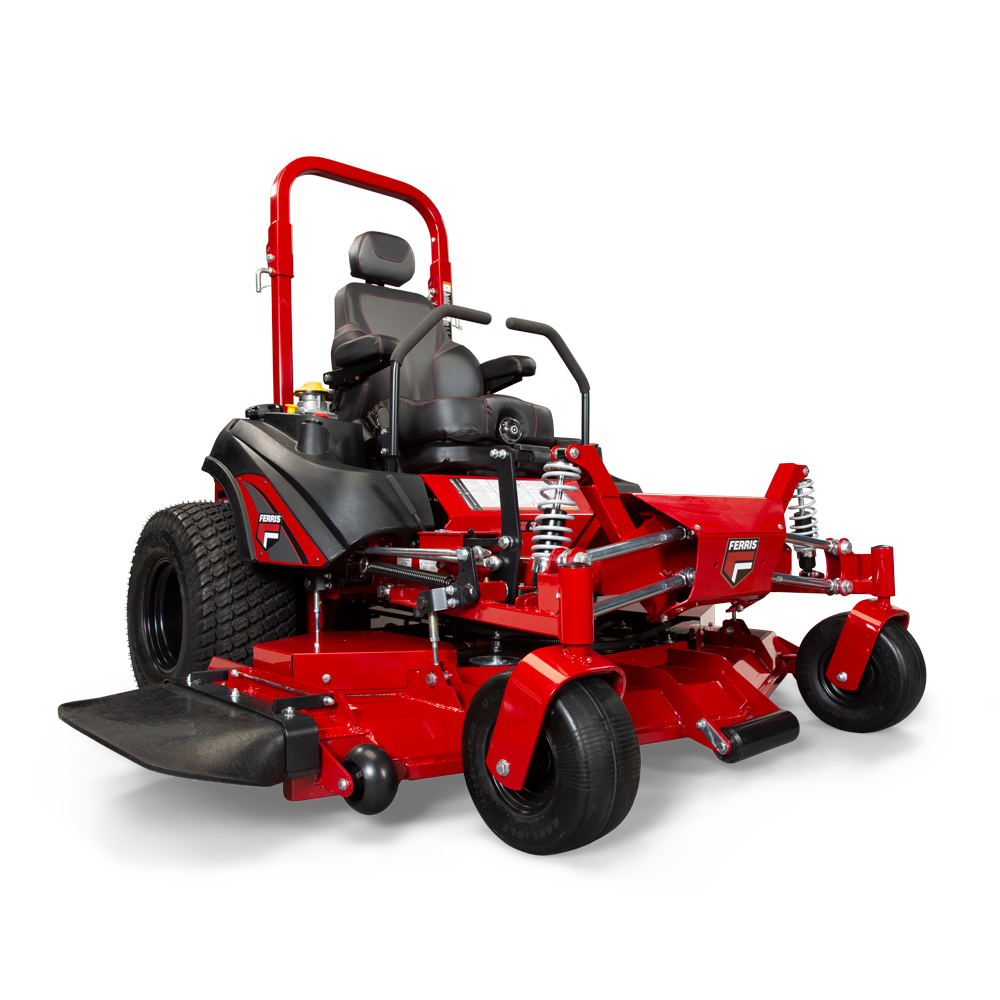

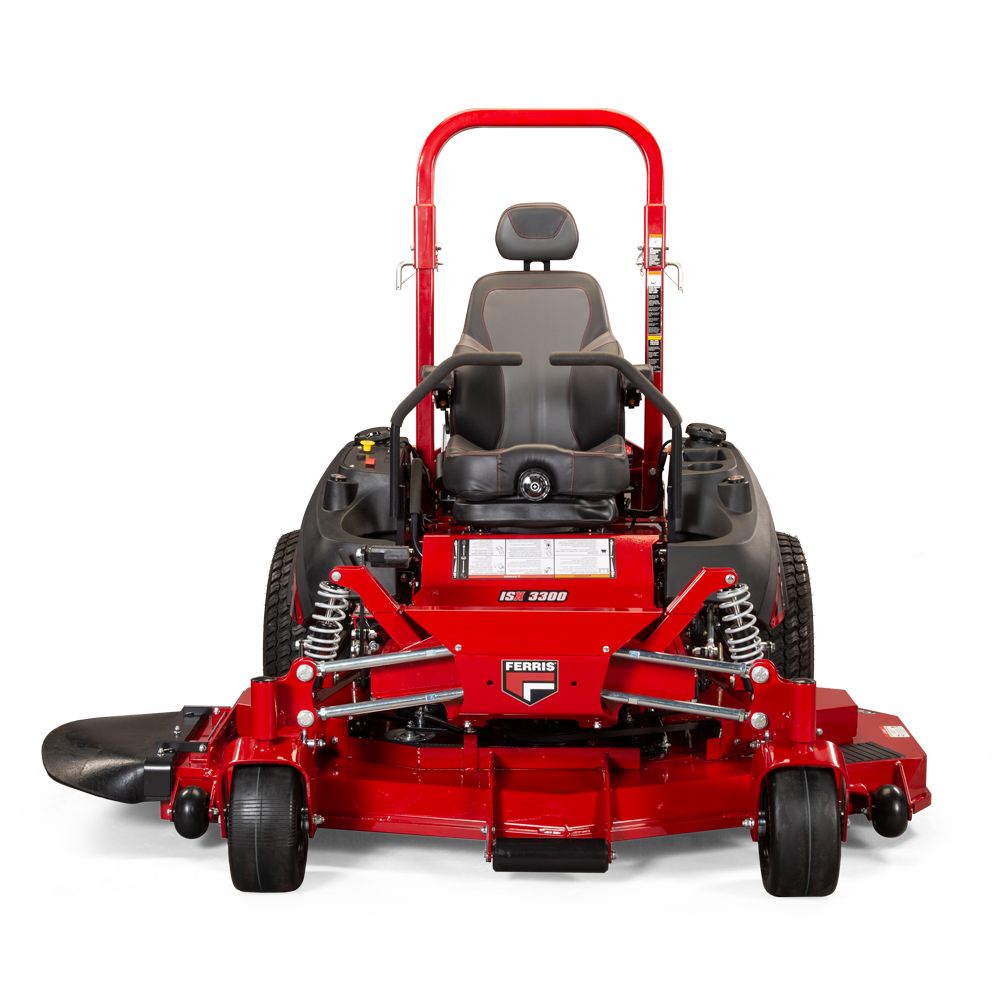

ISX™ 3300 Zero Turn Mowers
THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF
Featuring next-generation suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system, and travel speeds up to 12 mph. Plus, select models feature EFI-ETC technology for fuel savings, easy starting, and smooth, consistent productivity.
Features
ForeFront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
Ride-On Mower Warranties
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Vanguard BIG BLOCK™ Engine
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 40 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)
Drive System
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9″ cooling fans
Premium High-Back Suspension Seat
Mow in superior comfort with arm rests, multi-position head rest, adjustable lumbar and seat recline
Hercules™ II Cast-Iron
Hercules™ II Cast-Iron; 10″ dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16″ dia. shaft. Contact ball bearings with 1 3/16″ dia. shaft.
Vanguard Electronic Throttle Control
This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)
Specifications
Engine Brand
Vanguard® BIG BLOCK™ EFI ETC with Oil Guard
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Height (in)
1.5 – 5
Spindles
Hercules™ II cast-iron
Suspension
ForeFront™ Suspension System
Transmission
Dual-commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9″ cooling fans
Deck Construction
iCD™ Cutting System, 2-belt
Caster Tires (in)
13 x 6.5-6 flat-free
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
86/74
Seat Package
Premium high-back suspension seat with adjustable arm rests, multi-position headrest, adjustable lumbar and back recline
Certified Roll-over Protection System
158° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Vanguard®
|
| Illustrated Parts List
Wiring Diagram Schematic |
Attachments
Turbo-Pro™ Max or Fast-Vac® Triple Bag Soft Top Collection System 5601411
Triple Bag Soft Top is simple to install. Each heavyduty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 12.5 cubic feet.
Turbo-Pro™ Max or Fast-Vac® Electric DFS Collection System 5601417
The Electric DFS increases productivity by giving the operator the ability to release clippings from their seat with the use of a toggle switch. Capacity: 12.5 cubic feet. Fits 61″ models only.
Turbo-Pro™ Max or Fast-Vac® EZ Dump XL™ Collection System 5601419
The EZ Dump XL™ Collection System is ideal for larger jobs. Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped each time for increased productivity. Capacity: 14 cubic feet.
Mulch Kit 5600587
Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.
Flat-Free Caster Tires 5023279
Run all day with no flats, eliminates down time. Standard on select models.
Lawn Striping Kit 5600962
Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.
Trailer Hitch Kit 5600860
Will accept a 1/2” shank ball and comes complete with hardware.
LED Light Kit 5600891
Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
Service Jack 5601080, Mount 5601235, Ext Sleeve 5601079 Need All
Heavy-duty steel bracket and jack allows for easy and convenient access under the deck.
Suspension Seat
Suspension seat for optimal comfort. Available on select models.
|
