Description

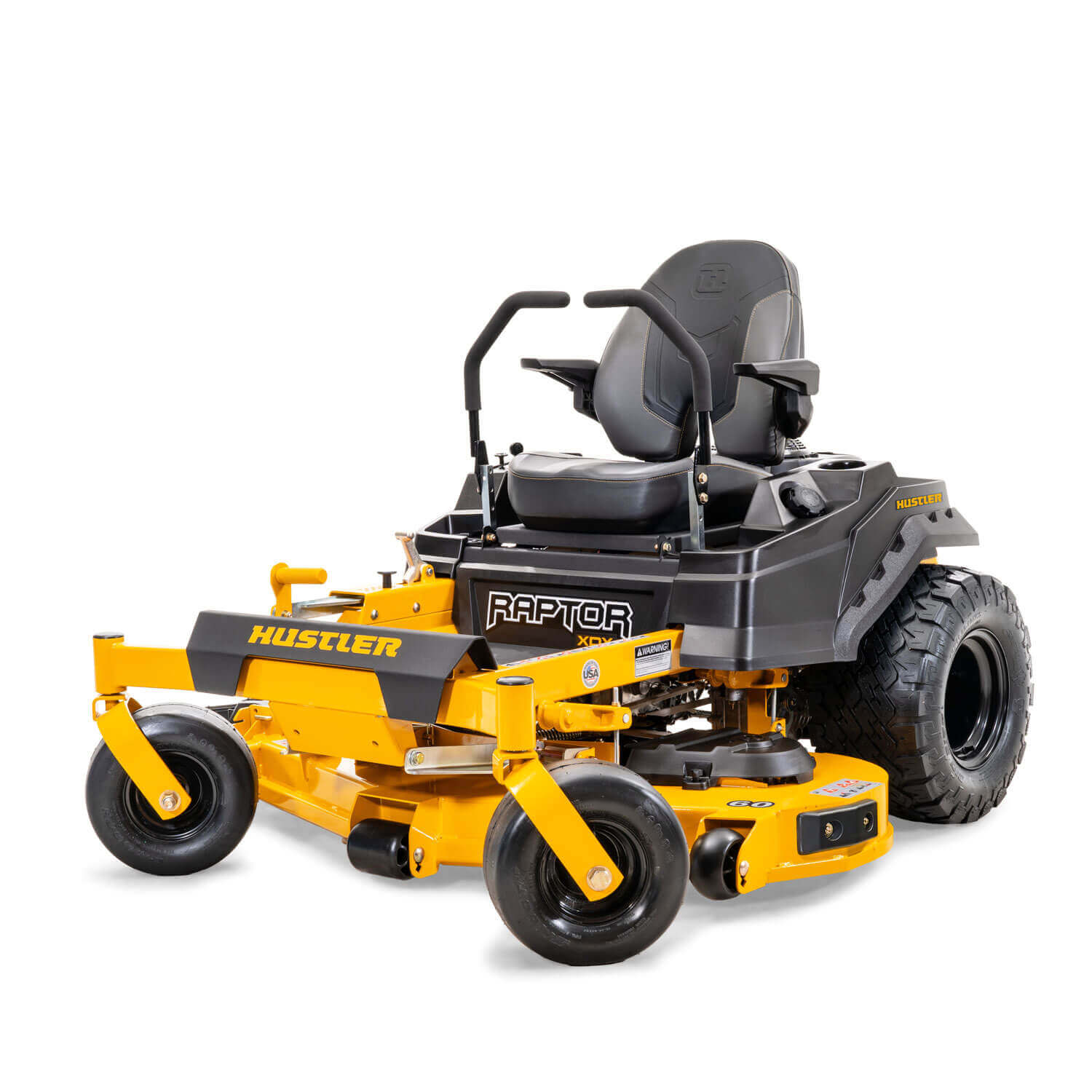

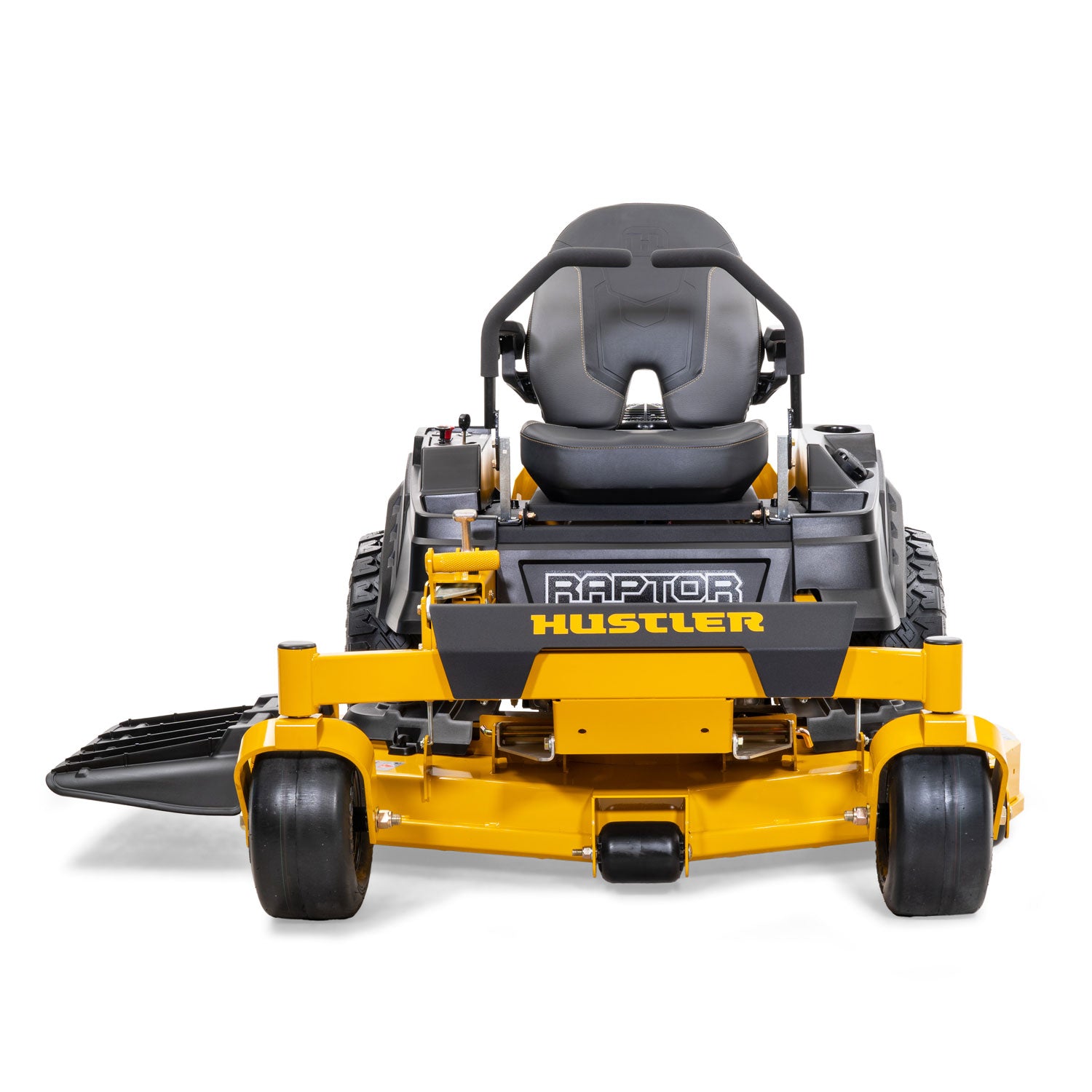

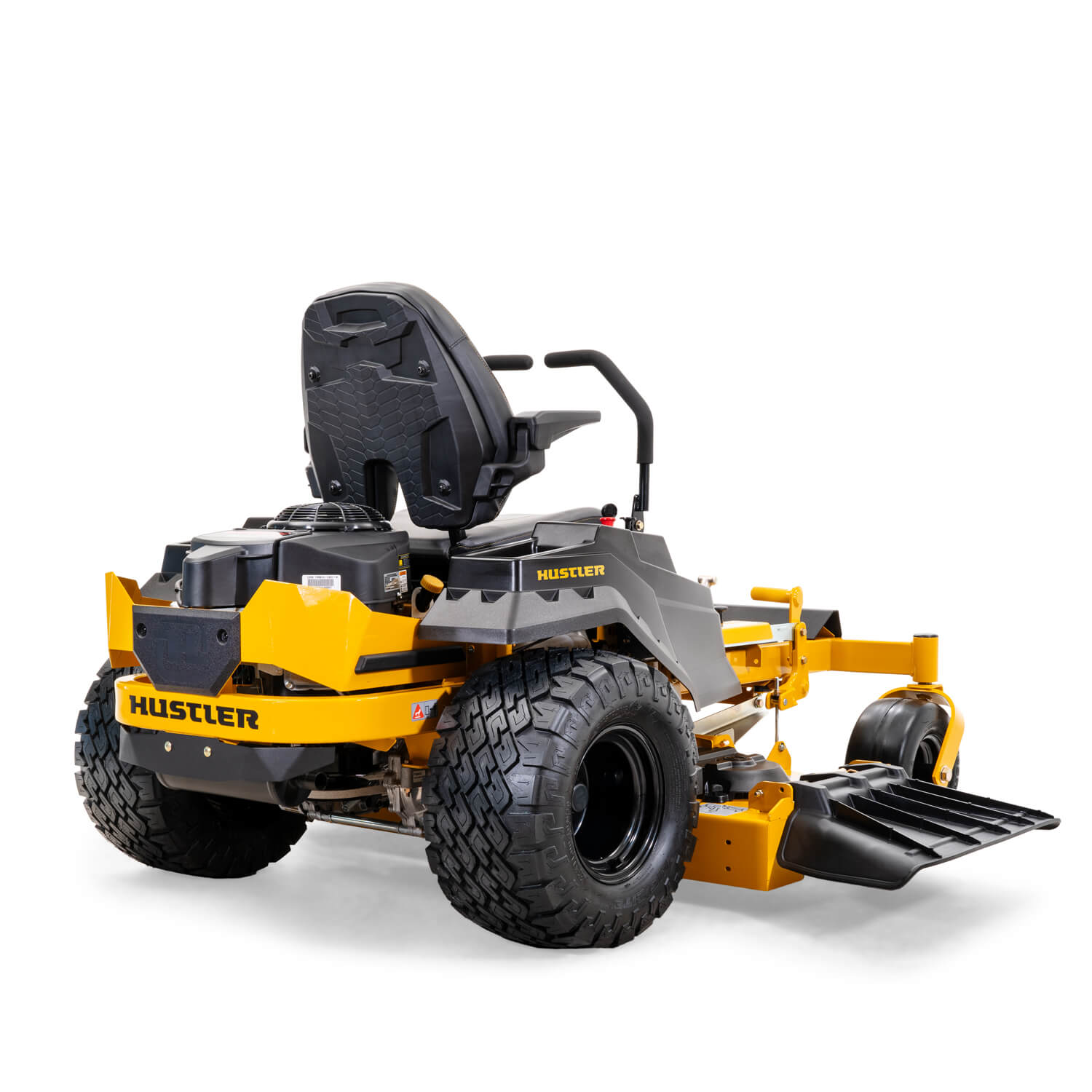

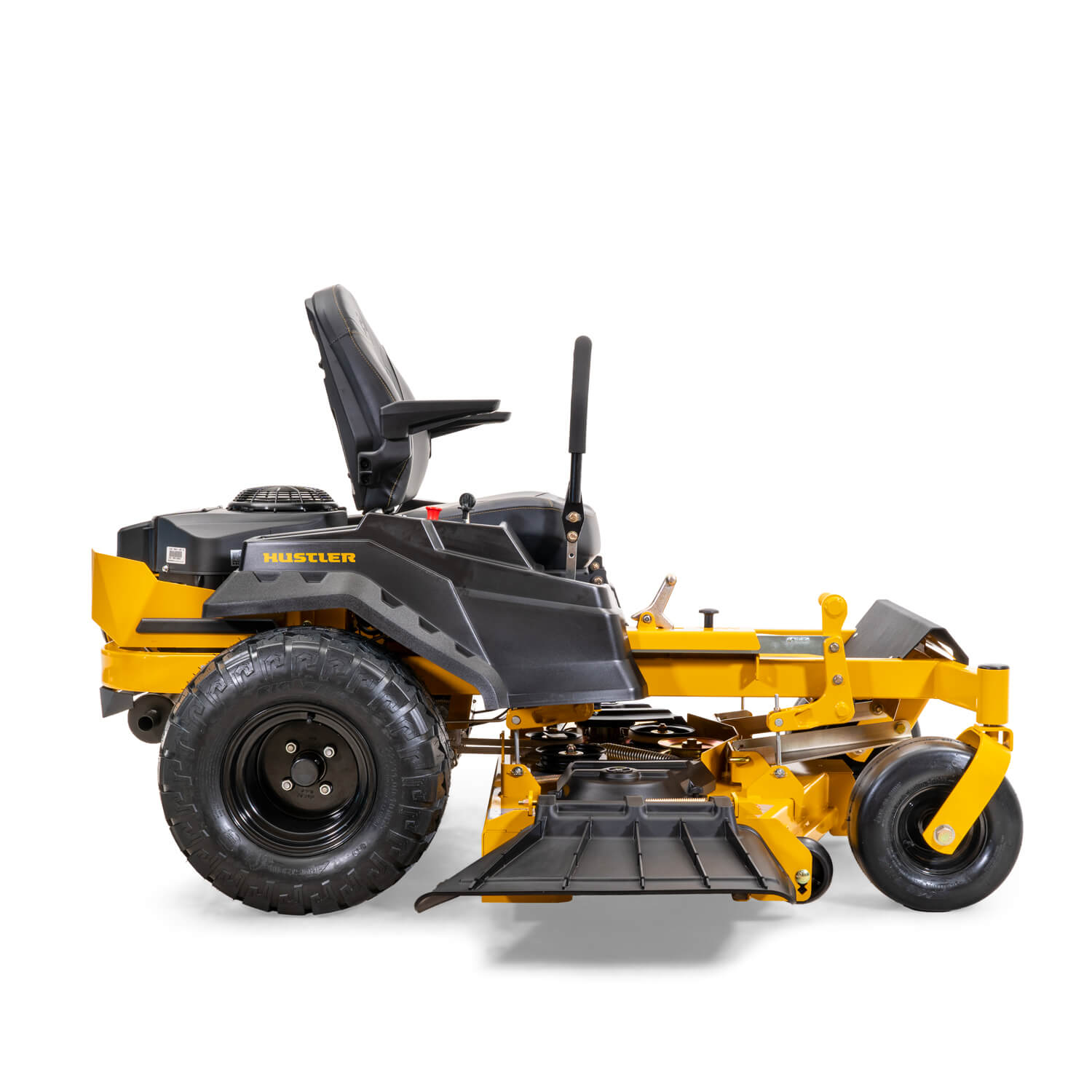

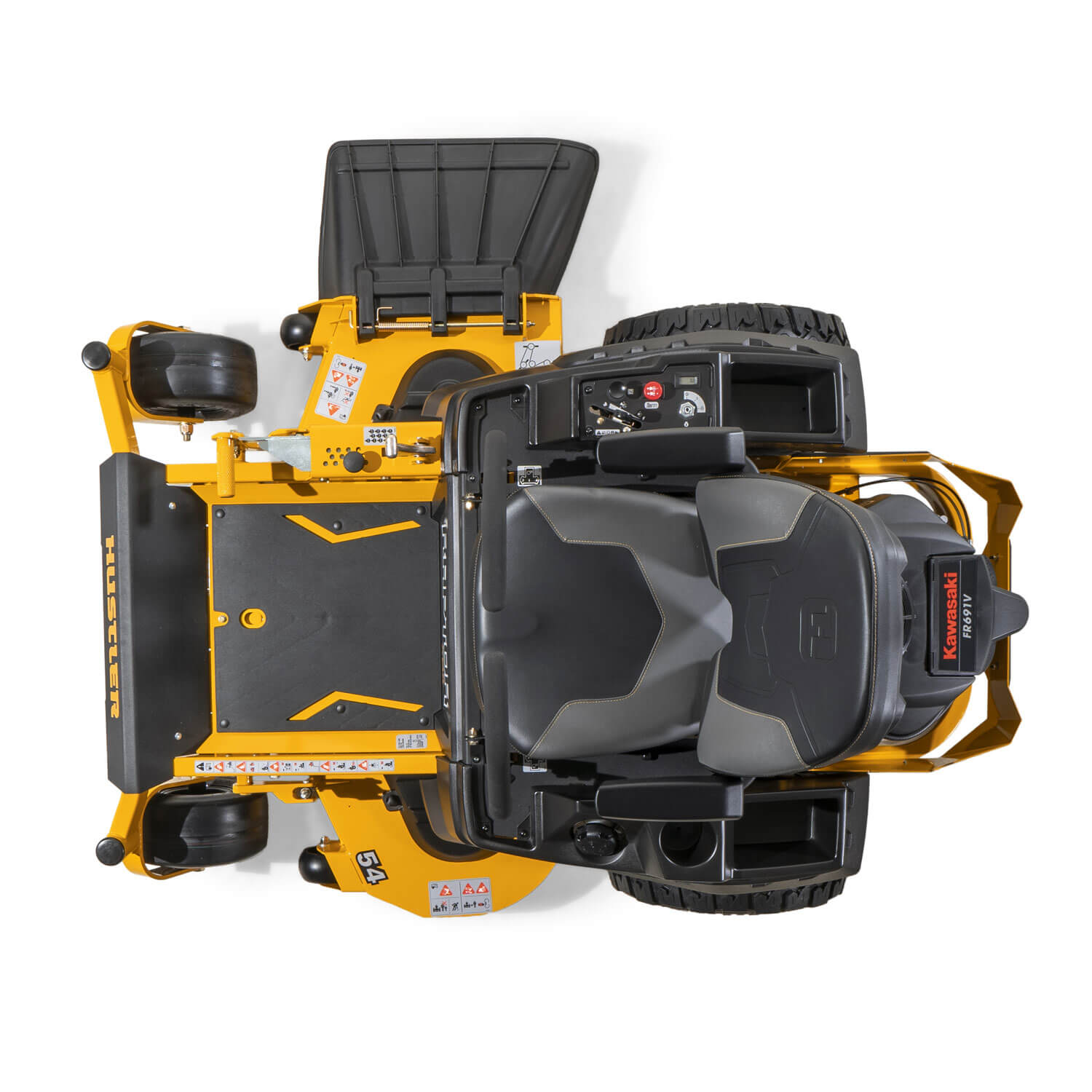

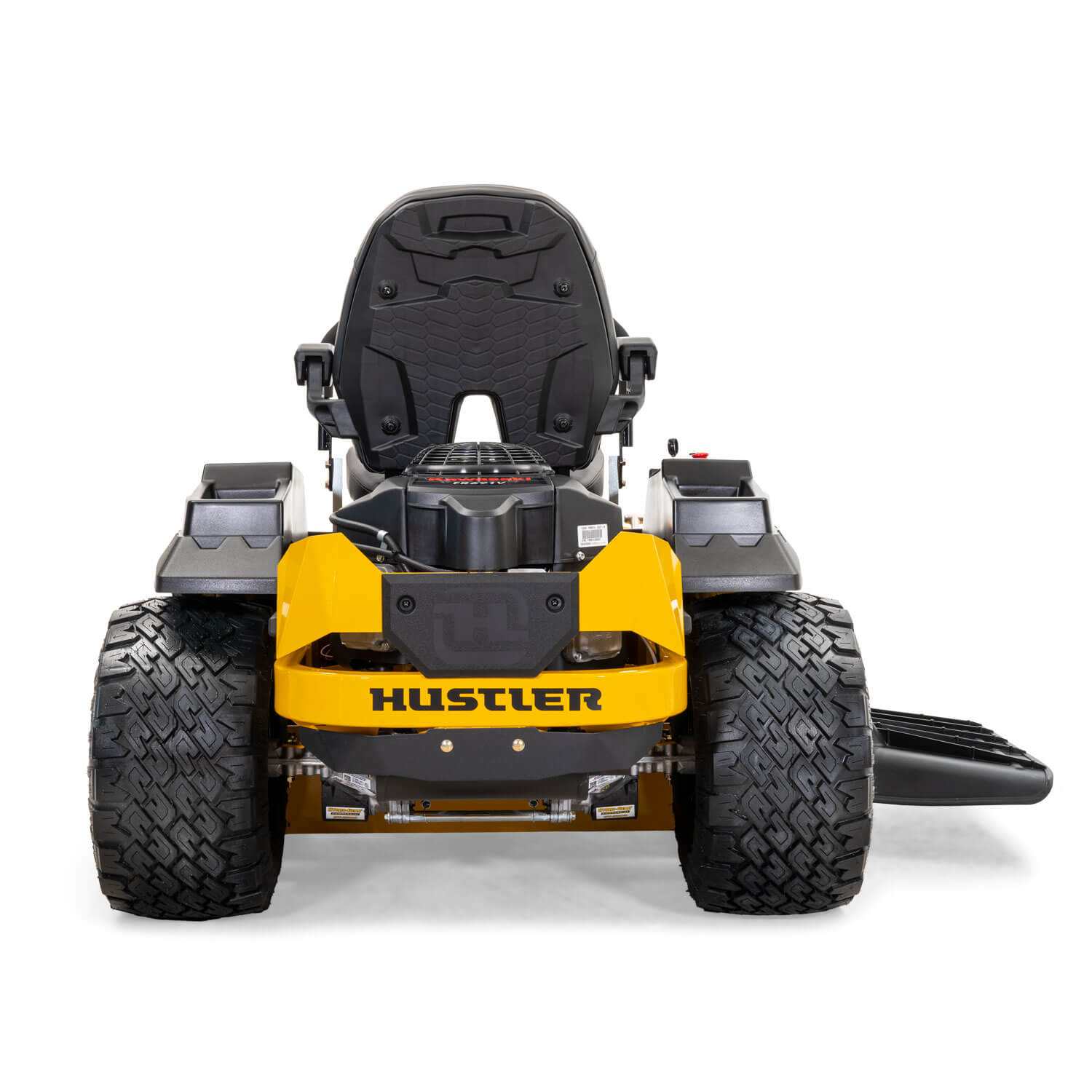

The Raptor XDX is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.
22″ BigBite™ Tires
More aggressive tire to handle tough jobs.
Extra High-back Seat
A premium extra high-back seat with armrests.
Commercial Grade Deck
Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
Engine Manufacturer: Kawasaki FR730
Engine Horsepower: 24
Transmission: Hydro-Gear ZT-3100™
Fuel Capacity: 3 gal.
Ground Speed (FWD): Up to 8 mph
Cutting Width: 60″
Cutting Height: 1.5″ to 4.5″
Deck Depth: 5″
Deck Lift: Foot Operated
Number of Blades: 3
Blade Tip Speed: 18,400
Spindles: Aluminum with 1″ shaft and sealed ball bearings
Deck Engagement: Electric PTO Clutch
Deck Material: Fabricated 10 gauge
Spindle Mounts: Reinforced 11 gauge
IMPACT Trim Area: 11 gauge formed channel with rolled edge
Front Tire: 13 x 6.5
Drive Tire: 23 x 11-10 BigBite™
Warranty: 3 Year/300 hour residential or 1 Year/300 hour commercial
Engine Warranty: 3 Year Warranty
Frame: 1.50″ X 3″ steel tubing
Front Axle: Fabricated with sealed ball bearings
Front Caster Wheel: Tapered roller bearings – grease-able
Front Caster Fork: Fabricated 3/8″ steel
Weight (lbs): 710
